Posted: Mon Oct 19, 2015 7:41 am Post subject: Samsung HT-Z310 Help please "protect" |
|
|
Hi I'm Lars I'm trying to fix an old surround sound unit I have here.
It was fixed multiple times under warranty until it ran out.
I have pretty limited knowledge on electronics so if you have the time to help you may need to explain things slowly for me.
The unit was starting then shutting down and saying protect, this was with no speakers plugged in.
I removed the cover and through some trial and error found that if I disconnected the AMP pcb it would start and run a disc ect.
I then found on the main power board that # R91 a 1/4w 1k resistor was burnt, also found that a diode #D31 was blown in 2 pieces and 3 capacitors were also swollen on top C92 C93 and C94.
Now I replaced all these parts with new ones, It then didnt start at all just a flickering standby light which I think I read somewhere was a short circuit? Now if leave the AMP pcb plugged in and I cut the #D31 diode back out it would start again say protect and shut down.
If I disconnect the AMP pcb completely again (with the #d31 diode still not in there) it will start and run a dvd and can watch it on tv just no sound obviously.
Its not essential that I fix it just thought it would be fun and could save some dollars trying to do it.
Thanks in advance. |
|
Back to top |
|
|
Guest
|
Posted: Mon Oct 19, 2015 7:50 am Post subject: |
|
|
I cant seem to get the email to register with, and I cant post the photo of the schematic as a guest |
|
Back to top |
|
|
jts1957
Joined: 24 Nov 2008 Posts: 2476 Location: Far, Far Away
|
|
Back to top |
|
|
larseirk1 Guest
|
Posted: Mon Oct 19, 2015 7:14 pm Post subject: |
|
|
Thanks for that link mate, looked high and low for that.
I have seen that other thread ( where I got my ideas from) but It he found a dry solder, I can not see anything like this on either board. |
|
Back to top |
|
|
jts1957
Joined: 24 Nov 2008 Posts: 2476 Location: Far, Far Away
|
Posted: Mon Oct 19, 2015 9:59 pm Post subject: |
|
|
Was just pointing out the existence of that other thread and the fact that the Model codes may end in a different suffix - hence schematics may also differ.
Person who found dry joint was NOT the OP.
I think in end you'll find one or more output ICs to be involved.
D31 is for the 12 volt supply.
The other 34.5 volt/PVDD supply looks to be exclusive to output ICs.
What voltages (or resistances) are you measuring on those lines. _________________ You're over there, I'm over here. |
|
Back to top |
|
|
larserik
Joined: 19 Oct 2015 Posts: 20 Location: Australia, QLD
|
Posted: Mon Oct 19, 2015 11:19 pm Post subject: |
|
|
Ok so here is where the dumb questions start....
What are the output IC's?
Where should I be testing voltages between?
Could you mark the points on the schematic for me?
If I'm to much hard work I understand, just trying to self teach myself.
_________________ .. |
|
Back to top |
|
|
jts1957
Joined: 24 Nov 2008 Posts: 2476 Location: Far, Far Away
|
Posted: Mon Oct 19, 2015 11:51 pm Post subject: |
|
|

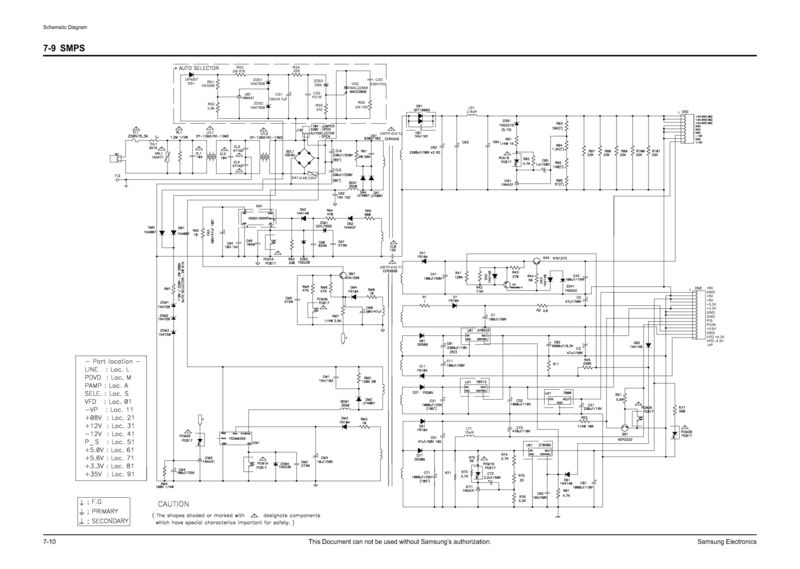

http://imgur.com/AF1xWLC
C92/C93/C94 negative terminals = ground reference - Black meter lead connects to this for voltage or resistance readings. _________________ You're over there, I'm over here. |
|
Back to top |
|
|
larserik
Joined: 19 Oct 2015 Posts: 20 Location: Australia, QLD
|
Posted: Tue Oct 20, 2015 12:17 am Post subject: |
|
|
jts1957 wrote: | http://imgur.com/AF1xWLC
C92/C93/C94 negative terminals = ground reference - Black meter lead connects to this for voltage or resistance readings. |
Ok thanks, so black lead on multi meter onto one of the negative terminals of either C92/C93 or C/94, and then red lead onto pin 1,7,8,9 on the amp pcb and check for 12v?
Sorry for being hard work _________________ .. |
|
Back to top |
|
|
jts1957
Joined: 24 Nov 2008 Posts: 2476 Location: Far, Far Away
|
Posted: Tue Oct 20, 2015 12:31 am Post subject: |
|
|
Pin 1 - 12 volt
Pins 7, 8 or 9 = PVDD (34.5 volts)
Oh, look. there are some more grounds you could use (Pins 4, 5 or 6) _________________ You're over there, I'm over here. |
|
Back to top |
|
|
larserik
Joined: 19 Oct 2015 Posts: 20 Location: Australia, QLD
|
Posted: Tue Oct 20, 2015 12:45 am Post subject: |
|
|
Thanks mate your a legend, that is a lot easier for me to understand I will test it tonight and let you know how I go, I'm due for a new multi meter are the auto ranging ones better or just a standard one? _________________ .. |
|
